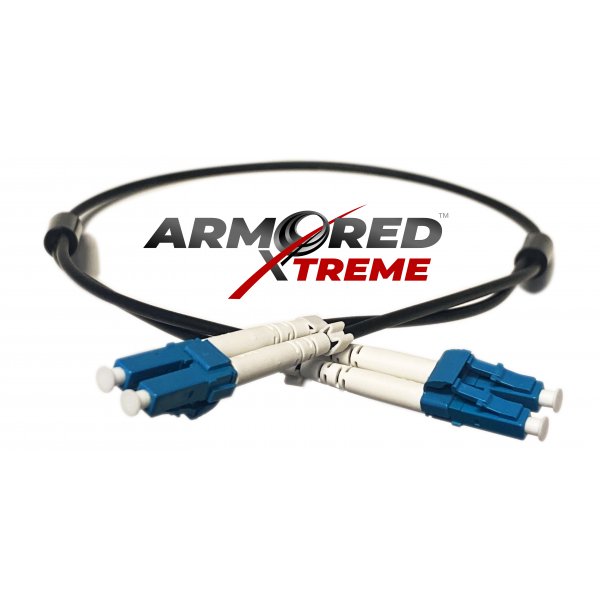

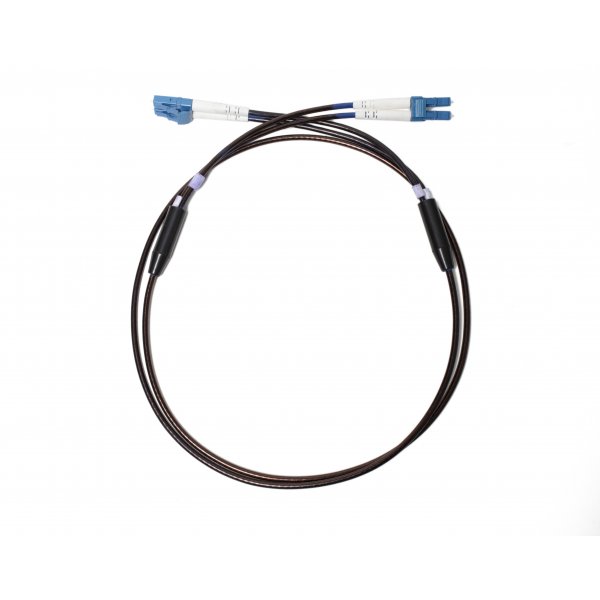

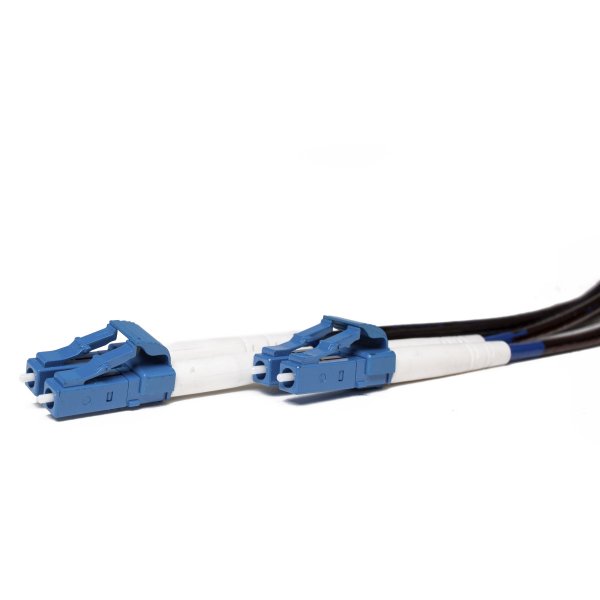

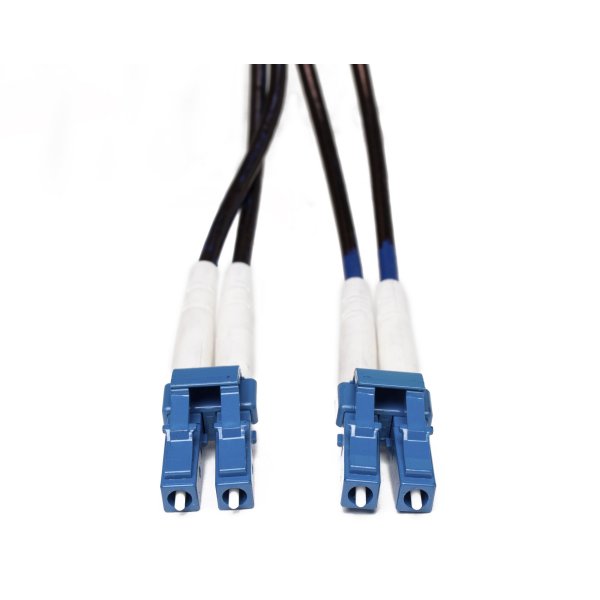

OM4 LC LC Armored Xtreme Indoor/Outdoor Fiber Patch Cable
$56.63
FCDUS468v12149
489 Items
In stock
Armored Xtreme™ -
Industrial grade, crush, water and rodent resistant, ultra-flexible, high-density fiber cable that can be used in any environmental conditions. Armored Xtreme™ can be used in any channel from Indoor, Outdoor, Security, CATV, SAN, Broadcast, Communication, Military, Cell Tower and Aerial installations. It can also be used in underground conduit.
-
Security Policy -
Delivery Policy -
Return Policy
FCDUS468v12149
489 Items
Data sheet
- Description
- Armored OM4 Duplex Fiber Optic Patch Cables / Fiber Jumper Cords
- Product Type
- Armored Duplex Fiber Optic Patch Cable
- Cable Type
- Male to Male Pre-terminated Fiber Optic Jumpers / Fibre Network Patch Cables
- Termination
- LC to LC Fiber Optic Cable
- Connector 1
- LC Duplex, 1.25mm form factor connector, ceramic ferrule.
- Polish Connector 1
- UPC (Ultra Physical Contact)
- Connector 2
- LC Duplex, 1.25mm form factor connector, ceramic ferrule.
- Polish Connector 2
- UPC (Ultra Physical Contact)
- Max Connector Loss
- 0.50 dB
- Typical Connector Loss
- 0.30 dB
- Typical Return Loss
- -55 dB
- Optical Mode Type
- OM4 Laser Optimized Multimode Fiber (LOMMF) - 50/125um core/cladding | 100G GbE 100GBase-SR10 150m, 40G GbE 40GBase-eSR4 QSFP+ 550m, 40G GbE 40GBase-SR4 150m, 10G GbE 10GBase-SR 400m, 1G GbE 1GBase-SX 550m (w/mode-conditioning).
- Core / Cladding
- 50/125µm - 50 micron diameter fiber core / 125 micron diameter cladding (1 micron is 1 one-millionth/1 meter)
- Core Material
- Corning Optical Fiber - Corning invented low-loss, high bandwidth, optical fiber and continues to deliver innovative glass solutions for fiber optic cables.
- Mode Type
- Multimode - Used for high speed fiber optic networking applications in buildings, datacenters, telecommunications, etc, also referred to as MM, MMode
- 1Gb Ethernet Dist
- OM4 Distance is 1040 Meters at 850nm / 600 Meters at 1310nm.
- 10Gb Ethernet Dist
- OM4 Distance is 550 Meters at 850 nm / 300 Meters at 1310 nm
- Bandwidth
- OM4 GbE Laser Optimized Fiber - 3500MHz-km @ 850nm, 4700MHz-km @1300nm | Optimized for VCSELS (vertical-cavity surface-emitting lasers).
- Strand Count
- 2 Fiber Strands
- Jacket Color
- Black - This is the standard jacket color for our Indoor/Outdoor fiber optic jumper cords / patch cables.
- Jacket Material
- Low Smoke Zero Halogen (LSZH / LS0H)
- Jacket OD
- 2.0mm Outer Diameter Jacket
- UL Rating:
- Low Smoke Zero Halogen (LSZH)
- Length Options
- 0.5-Mtr 1-Mtr 2-Mtr 3-Mtr 4-Mtr 5-Mtr 6-Mtr 7-Mtr 8-Mtr 9-Mtr 10-Mtr 12-Mtr 15-Mtr 20-Mtr 25-Mtr 30-Mtr 35-Mtr 40-Mtr 45-Mtr 50-Mtr 55-Mtr 60-Mtr 65- Mtr 70-Mtr 75-Mtr 80-Mtr 85-Mtr 90-Mtr 95-Mtr 100-Mtr 125-Mtr 150-Mtr 200-Mtr 250-Mtr 300-Mtr
- Quality Control
- Fully inspected and tested in accordance with ANSI/TIA/EIA-455-171-A- 2001 attenuation standards by a qualified fiber optic technician.
- Warranty
- Lifetime - All FiberCablesDirect products come with a lifetime warranty. If it stops working when it shouldn't, we'll replace it free.
- Current Specials
- Free Shipping / Same Day Shipping available on fiber optic patch cable orders
- Storage Temperature
- -40° C to + 70° C
- Operating Temperature
- -20° C to + 70° C
Specific References
- upc
- 670628009053
View the trust certificate
- For further information on the nature of the review controls, as well as the possibility of contacting the author of the review please consult our CGU.
- No inducements have been provided for these reviews
- Reviews are published and kept for a period of five years
- Reviews can not be modified: If a customer wishes to modify their review then they can do so by contacting Verified Reviews directly to remove the existing review and publish an amended one
- The reasons for deletion of reviews are available here.
-
1
0 -
2
0
-
3
0
-
4
0
-
5
6
Sort reviews by :
Patrick R. published the 29/07/2024 following an order made on 23/07/2024
5/5
The best form of duplex cable you can pull to remote locations. The slick outside jacket pulls with little friction, and the inside armor helps keep the fiber alive despite the elements of physical abuse during installation.
Eric B. published the 14/02/2024 following an order made on 02/02/2024
5/5
This pre-terminated fiber has been extra strong and durable and works perfectly. It took a forklift to pull on it until it snapped. Reason why I had to purchase another run of fiber.
Justin B. published the 23/10/2023 following an order made on 11/10/2023
5/5
Items are readily available.
Gary B. published the 29/08/2023 following an order made on 16/08/2023
5/5
Great quality.
