OM3 LC ST Duplex Fiber Patch Cable 10G Multimode 50/125

$11.94

Part Number: FCDUS48v45

In stock 500 Items

In stock

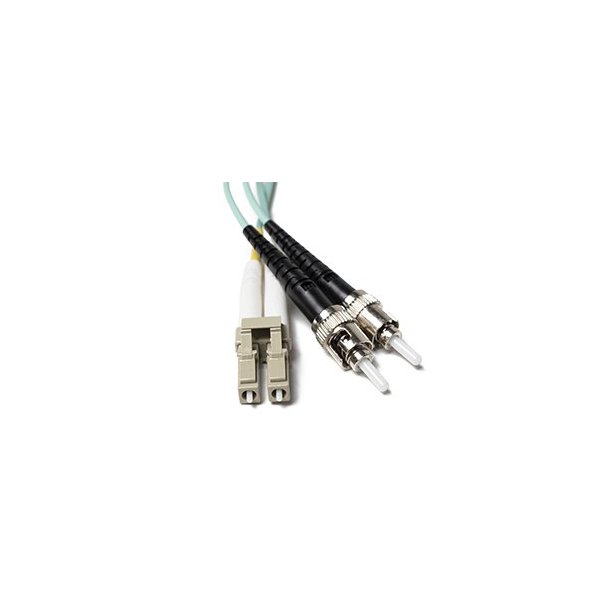

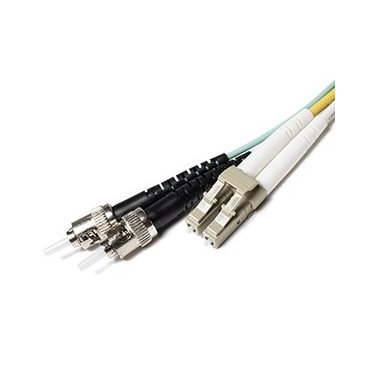

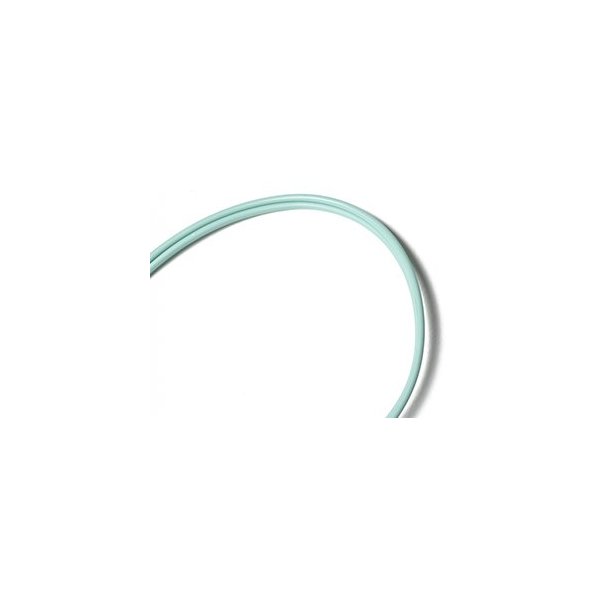

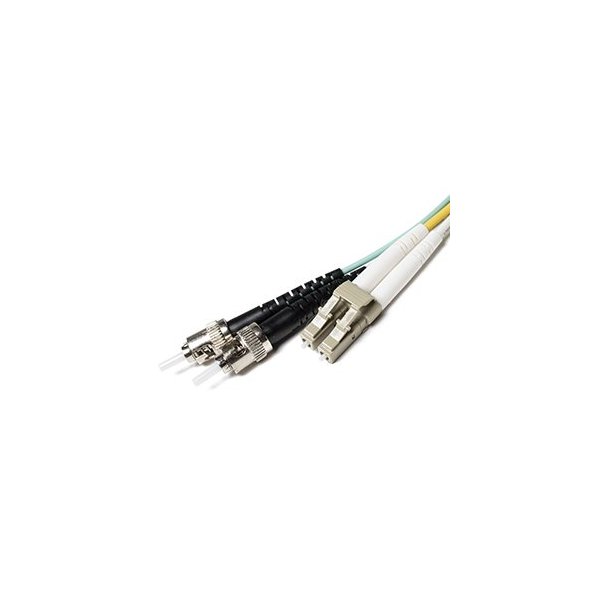

OM3 LC ST 10Gig Multimode Duplex 50/125 Fiber Patch Cables (10Gb up to 300 meters). Terminated with ceramic ferrule LC connectors and stainless steel ferrule ST connectors. Aqua zip-cord fiber jumper cable with 2.0mm outer diameter PVC OFNR Riser Rated jacket.

Length

Quantity

Add Compare

Security Policy
Delivery Policy
Return Policy

OM3 LC to ST 10 Gig 50/125 Multimode Duplex fiber patch cables with Corning optical fiber, 300 meter rated (10Gb/850nm) patch cable with stainless steel ST connectors and ceramic LC (clips included) connectors. A durable, aqua colored zip-cord fiber optic patch cable with 2.0mm outer diameter, OFNR riser rated PVC flame retardant jacket for vertical pathways, shafts, and spaces between building floors.

Each OM3 LC ST 50/125 Multi-mode fiber optic cable ordered from FiberCablesDirect is individually tested and bagged with test results inside. We also provide a Lifetime warranty on all our products.

Lengths available in our online catalog for Om3 Lc St 10g 50/125 multimode duplex fiber optic cables: 0.5 Meter, 1 Meter, 2 Meter, 3 Meter, 4 Meter, 5 Meter, 6 Meter, 7 Meter, 8 Meter, 9 Meter, 10 Meter, 12 Meter, 15 Meter, 20 Meter, 25 Meter, 30 Meter, 35 Meter, 40 Meter, 45 Meter, 50 Meter, 55 Meter, 60 Meter, 65 Meter, 70 Meter, 75 Meter, 80 Meter, 85 Meter, 90 Meter, 95 Meter, 100 Meter, 125 Meter, 150 Meter, 200 Meter, 250 Meter, and 300 Meter.

Need a fiber optic cable assembly not in our online catalog? No problem, we have plenty of options:

Try our Custom Cable Configurator, quickly build your own customized fiber optic cable and simply add to your Cart. You can select any Cable Type, any Length, any Connector configuration, any Modality, any Strand Count, and more.
Call in your Custom Cable Request at (866) 933-4237 and our support team will help you get the perfect Fiber Cable solution for your specific requirement.
Chat with FCD Tech Support for quick answers to your technical questions.

Additional Ordering Options:

Call in your Order at (866) 933-4237 we'll process your order right over the phone. Pay with a Check, Credit Card, or Create an account and pay with a PO#.
Call in your Quote Request at (866) 933-4237 and your Quotation will be emailed. With 1 simple click you can checkout online from your FiberCablesDirect.com account.

Reference FCDUS48v45

In stock 500 Items

Data sheet

Description: 10Gb Multimode 50/125 Duplex Fiber Optic Patch Cable / OM3 Fiber Jumper Cord
Product Type: Fiber Optic
Cable Type: Male to Male Pre-terminated Fiber Optic Jumpers / Fibre Network Patch Cables
Termination: LC to ST Fiber Optic Cable
Connector 1: LC Duplex, 1.25mm form factor connector, ceramic ferrule.
Polish Connector 1: UPC (Ultra Physical Contact)
Connector 2: ST Duplex, a long cylindrical, spring loaded connector with 2.5 mm ferrule.
Polish Connector 2: UPC (Ultra Physical Contact)
Max Connector Loss: 0.50 dB
Typical Connector Loss: 0.30 dB
Typical Return Loss: -25 dB
Optical Mode Type: OM3 Laser Optimized Multimode Fiber (LOMMF) - 50/125um core/cladding | 100G GbE 100GBase-SR10 100m, 40G GbE 40Gbase eSR4 QSFP+ 330m, 40G GbE 40GBase-SR4 100m, 10G GbE 10GBase-SR 300m, 1G GbE 1GBase-SX 550m (w/mode-conditioning).
Core / Cladding: 50/125µm - 50 micron diameter fiber core / 125 micron diameter cladding (1 micron is 1 one-millionth/1 meter)
Core Material: Corning Optical Fiber - Corning invented low-loss, high bandwidth, optical fiber and continues to deliver innovative glass solutions for fiber optic cables.
Mode Type: Multimode - Used for high speed fiber optic networking applications in buildings, datacenters, telecommunications, etc, also referred to as MM, MMode
Technology: Laser-Optimized Multimode Fiber (LOMMF)
Network Speed: 10 Gb/s Transmission (OM3)
1Gb Ethernet Dist: OM3 Distance is 1000 Meters at 850 nm / 600 Meters at 1310 nm
10Gb Ethernet Dist: OM3 Distance is 300 Meters at 850 nm / 300 Meters at 1310 nm
Bandwidth: OM3 GbE Laser Optimized Fiber - 1500MHz-km @ 850nm, 2000MHz-km @ 1300nm | Optimized for VCSELS (vertical-cavity surface-emitting lasers).
Strand Count: 2 Fiber Strands
Jacket Color: Aqua - This is the standard jacket color for OM3/OM4 multimode fiber jumper cords / fiber patch cables.
Jacket Material: PVC (polyvinyl chloride) - Fire-retardant and very flexible for easy installation
Jacket OD: 2.0mm Outer Diameter Jacket
UL Rating:: OFNR (Optical fiber, nonconductive, riser) - Certified for use in riser, backbone, fiber only applications, riser rated for vertical runs
Compliance: ROHS Compliant
Length Options: 0.5-Mtr 1-Mtr 2-Mtr 3-Mtr 4-Mtr 5-Mtr 6-Mtr 7-Mtr 8-Mtr 9-Mtr 10-Mtr 12-Mtr 15-Mtr 20-Mtr 25-Mtr 30-Mtr 35-Mtr 40-Mtr 45-Mtr 50-Mtr 55-Mtr 60-Mtr 65- Mtr 70-Mtr 75-Mtr 80-Mtr 85-Mtr 90-Mtr 95-Mtr 100-Mtr 125-Mtr 150-Mtr 200-Mtr 250-Mtr 300-Mtr
Quality Control: Fully inspected and tested in accordance with ANSI/TIA/EIA-455-171-A- 2001 attenuation standards by a qualified fiber optic technician.
Warranty: Lifetime - All FiberCablesDirect products come with a lifetime warranty. If it stops working when it shouldn't, we'll replace it free.
Current Specials: Free Shipping / Same Day Shipping available on fiber optic patch cable orders
Storage Temperature: -40° C to + 70° C
Operating Temperature: -20° C to + 70° C
